Boltless Steel Warehouse Long Span Racking System Shelving
About Long Span Racking System:

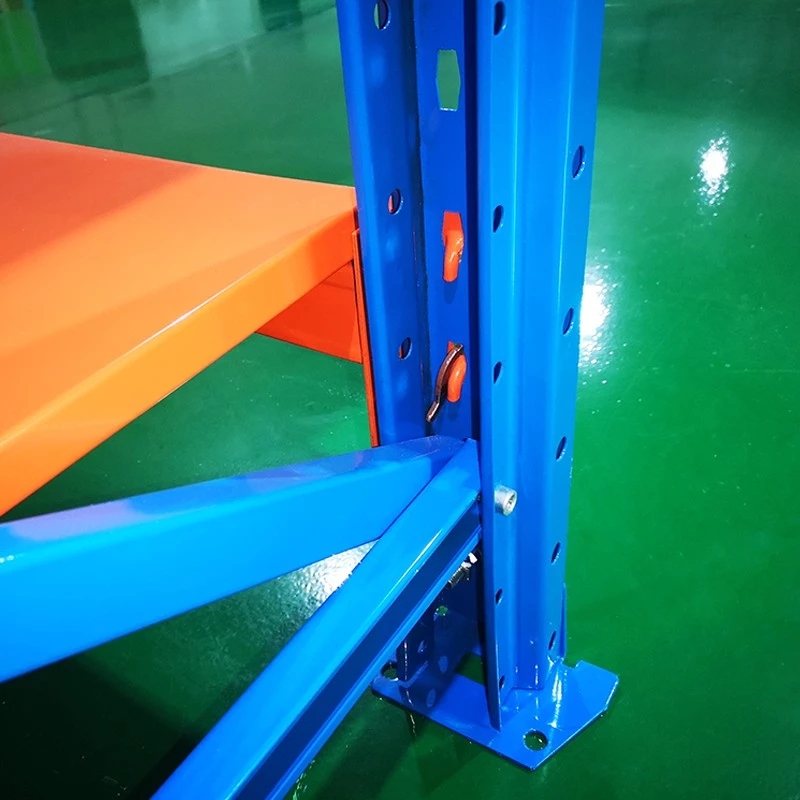

Long Span Shelving comes in beams, shelves and a combination
structure. The beams are horizontal, adaptable and are connected to
the upright column. The beams are what support the shelves and
loads. In garments storage, the beams come in rod shape to support
hangers. Items like tyres and wheels are directly stored on the
beams instead of shelves. The beams are the most important part in
this system as they provide rigidity to the whole structure. They
are also adjustable at a pitch of 50 mm. This system widely used
for garages, offices, stores and warehouses etc.
Features of Long Span Shelving:
1. Rigid-structure, durable, versatile and economical shelving
system, most widely used for storage of different items.
2. Available in wide range of shelving height, depth & length and
loading capacities to clients' storage needs.
3. Fully adjustable shelf height.
4. Very easy to install and dismantle.
5. Rapid handling and direct access of almost all types of goods.
6. Maximizes space use in any storeroom configuration while
retaining optimum productaccessibility.
7. Strength and rigidity prevents compression damage to goods.
Specifictions of Long Span Racking System:
| Product Name | Long Span Shelving |
| Material | Cold-rolled Steel Q235 |
| Upright Section | 80*60;90*60;90*70;100*70;120*95 |
| Beam Section | 80*50/100*50mm |
| Product size | Height:2000/300/4500//5025/6000/7500mm |
| Depth:1350mm |
| Length:2100/3150/4200/5250/6300/7350mm |
| Thickness | Upright:2.0/2.5mm |
| Beam:2.0/2.5mm |
| Load Capacity | 200/1000kg per level |
| Layer | 2-6 Adjustable layers(can be customised) |
| Color | Upright:Blue-RAL5015;RAL5005 |
| Beam:Orange-RAL2004 |
| Surface finish | Power Coated |
| Packing | Packed by steel belt and plastic film |
Long Span Shelving include Starter Shelf + Add-on Shelf
About Liyuan Company:
Shenzhen Liyuan Industrial Equipment Co., Ltd. is specialized in
the development, design, production, sales, installation and
service of storage and storage equipment since 2007 . It has become
a large-scale storage shelf manufacturer at home and abroad. And
advanced companies in the development and production of intelligent
industrial equipment. The company has passed ISO9001: 2000 quality
management certification, ISO14001: 2004 environmental management
system certification, OHSAS18001: 2007 safety management system
certification. And has won the honorary title of China's quality
and credit enterprise and the title of advanced intelligent and
technological enterprise.
Our Services
Pallet rack shelving Consulting and Design Services
We offer no obligation professional consultation and design. Allow
our experienced staff to assist you in designing a storage system
that best suits your particular needs.
We also offer:
• Professional CAD Drawings
• Stamped Engineered Drawings
Custom sizes and colors are also available.
Custom designed and built to meet your specific needs and
requirements.
>>> After Sale Service
1. Professional engineer and application specialists respond to
your requests efficiently;
2. Online via SKYPE MSN; Also through mail, voice phone message and
fax if network is not accessible for customer;
3. Follow up the case, record the entire process, report complaint
to QC department;
4. QC will find defect from which department ,who is in charge to
identify responsibility
record customer respond,suggestion,requirement.
FAQ:
1. What makes you different with others?
1) Our Excellent Service
For a quick, no hassle quote just send email to us
We promise to reply with a price within 24 hours - sometimes even
within the hour.
If you need an advice, just call our export office at 0086- 0755-29792161, we will answer your questions immediately.
2) Our quick manufacturing time
For Normal orders, we will promise to produce within 15 days.
As a manufacturer, we can guarantee the delivery time according to
the formal contract.
3) Our Special Export Design
We pay very much attention to the export packages. We have plastic
clips on the beams to protect the beams from surface damage in the
transportation, We have got the whole uprights wrapped with
transparent plastic film.
4) Our Export Experience
We are a manufacturer which wholesales storage racks in large
quantity for over 10 more years.
2. How do you ensure your product and service quality?
A: All our processes strictly adhere to ISO-9001 procedures. Raw
material inspect ---- First Production Confirm ---- Painting
inspect ------ Full inspect before packing. And we have 3 years
quality warranty against BL issue date.
3. How to install the racks?
A: You will get detailed install instruction for the rack you
custom. If needed, we can provide our engineers to instruct your
workers.
4. What is delivery time?
This depends on the product. Typically standard products are
delivered within 20 days.
The delivery time of the special products is according to the time
of setting up of the tooling.
5. What is the term of payment?
1) T/T payment.
2) L/C
6. If we find your bank account different as before, how should we
respond?
A: Pls don’t send the payment and double check with us before
arrange payment.
7. What you need to provide us before quotation?
A. Already with project design: Just send us, you will get
quotation soon.
B. Without project design: Tell us detailed information, for
example warehouse size, rack size, loading capacity, level…You will
get free design.
8. If we don’t find what we need on your web, what should we do?
A: We could provide custom service, pls tell your request to us.
9. May I know the status of my order?
Yes .We will send you information and photos at different
production stage of your order. You will get the latest information
in time
10. How to be the agent of your factory?
A: We are warmly welcome the agent from world country. Pls feel
free to contact us for detailed discussion. You will be the solo
agent in your country.
Our Advantage:
1) Our quick reply
For a quick quotation, just send email to us. We promise to reply
with a price within 12 hours
2) Our short delivery time
For selective pallet racking orders, we will promise to produce
within 15 days. As a manufactory we can essure the delivery time
according to the formal contract.
3) Our special exporting packages.
We have plastic clips on the beams to protect the beams from
surface damage in the transportation, We have got the whole
uprights wrapped with transparent plastic film.
