Moveable Heavy Duty Pallet Racks Automatic Radio Shuttle Runner Car Racking

    Buy cheap Moveable Heavy Duty Pallet Racks Automatic Radio Shuttle Runner Car Racking from wholesalers

    Buy cheap Moveable Heavy Duty Pallet Racks Automatic Radio Shuttle Runner Car Racking from wholesalers
    • Buy cheap Moveable Heavy Duty Pallet Racks Automatic Radio Shuttle Runner Car Racking from wholesalers
    • Buy cheap Moveable Heavy Duty Pallet Racks Automatic Radio Shuttle Runner Car Racking from wholesalers

    Moveable Heavy Duty Pallet Racks Automatic Radio Shuttle Runner Car Racking

    Ask Lasest Price
    Brand Name : Liyuan
    Model Number : radio shuttle racking
    Certification : CE, SGS, ISO9001
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 1000 sets per month
    Delivery Time : 20-30 business days
    • Product Details
    • Company Profile

    Moveable Heavy Duty Pallet Racks Automatic Radio Shuttle Runner Car Racking

    Moveable heavy duty pallet racks automatic radio shuttle pallet racking runner car racks

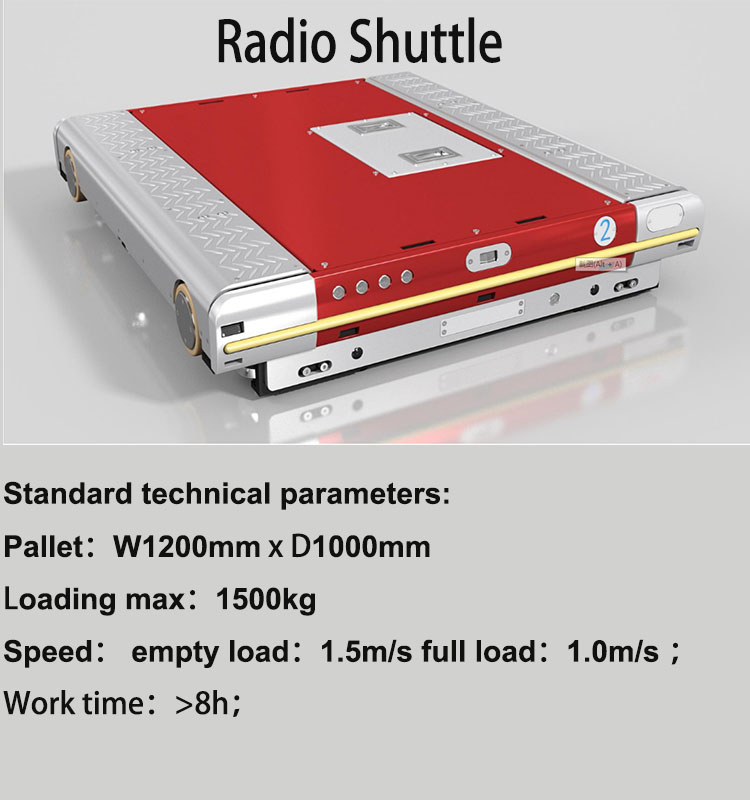

    About Radio Shuttle Racking:

    Shuttle rack system is a semi-automatic storage system that allows the loading and unloading of products along the shelf with automatic carriers without the need for forklifts to navigate through the warehouse corridors.
    The shuttle is used by the operator with a remote control, which includes automatic or manual back and front, up and down,
    loading and unloading functions. The shuttle can be transported to other rack cells using a forklift. Thus, access to all shelf cells.
    1mt / sec can carry 1500kg capacity.
    Advantages:
    Save space
    Store more pallets deep, since channels can stand more than 131 ft high. The maximum verticality is determined by the handling equipment used.
    The system works with minimal clearances between levels, which permits high-density storage.
    Built-in sensors on the shuttles help position loads intelligently, eliminating empty spaces in the storage lanes. As a result, the effective capacity of the warehouse (which considers goods flowing in and out of the warehouse) reflects its physical capacity.

    Specifications of Radio Shuttle Racking:

    ItemShuttle Racking System
    BrandLiyuan
    MaterialQ235B Cold-roll Steel
    Basic ComponentsUpright&Beam, Shuttle cart, Guide Rail etc
    Loading Capacity1000-6000kg/level
    Upright Section(mm)80*60/90*70/100*70/120*95;
    Beam Section(mm)80*50/100*50/120*50/140*50/160*50;
    Thickness1.5,1.8,2.0,2.5mm(Upright);
    Working Temperature-30 ℃ to 60 ℃
    Working Time8 hours
    Charging Time3 hours
    Surface TreatmentElectrostatic Spray Surface;
    FeatureAnti-rust,Corrosion protection;
    Warranty10 years
    CertificationSGS/ISO9001/CE

    Features of Shuttle Racking:

    • Efficient load and unload system, which ensures high accuracy.
    • Less damage to the racking units as the forklift does not enter the racking unit.
    • Greatly reduced labor cost
    • Compatible with different pallet sizes.
    • Ideal for storage at low temperature(-25℃)


    Steps Description:


    About Liyuan Company:

    Shenzhen Liyuan Industrial Equipment Co., Ltd. is specialized in the development, design, production, sales, installation and service of storage and storage equipment since 2007 . It has become a large-scale storage shelf manufacturer at home and abroad. And advanced companies in the development and production of intelligent industrial equipment. The company has passed ISO9001: 2000 quality management certification, ISO14001: 2004 environmental management system certification, OHSAS18001: 2007 safety management system certification. And has won the honorary title of China's quality and credit enterprise and the title of advanced intelligent and technological enterprise.


    FAQ:


    1. What makes you different with others?

    1) Our Excellent Service

    For a quick, no hassle quote just send email to us

    We promise to reply with a price within 24 hours - sometimes even within the hour.

    If you need an advice, just call our export office at 0086- 0755-29792161, we will answer your questions immediately.

    2) Our quick manufacturing time

    For Normal orders, we will promise to produce within 15 days.

    As a manufacturer, we can guarantee the delivery time according to the formal contract.

    3) Our Special Export Design

    We pay very much attention to the export packages. We have plastic clips on the beams to protect the beams from surface damage in the transportation, We have got the whole uprights wrapped with transparent plastic film.

    4) Our Export Experience

    We are a manufacturer which wholesales storage racks in large quantity for over 10 more years.


    2. How do you ensure your product and service quality?


    A: All our processes strictly adhere to ISO-9001 procedures. Raw material inspect ---- First Production Confirm ---- Painting inspect ------ Full inspect before packing. And we have 3 years quality warranty against BL issue date.


    3. How to install the racks?

    A: You will get detailed install instruction for the rack you custom. If needed, we can provide our engineers to instruct your workers.


    4. What is delivery time?

    This depends on the product. Typically standard products are delivered within 20 days.

    The delivery time of the special products is according to the time of setting up of the tooling.

    5. What is the term of payment?

    1) T/T payment.

    2) L/C

    6. If we find your bank account different as before, how should we respond?

    A: Pls don’t send the payment and double check with us before arrange payment.


    7. What you need to provide us before quotation?

    A. Already with project design: Just send us, you will get quotation soon.
    B. Without project design: Tell us detailed information, for example warehouse size, rack size, loading capacity, level…You will get free design.


    8. If we don’t find what we need on your web, what should we do?

    A: We could provide custom service, pls tell your request to us.


    9. May I know the status of my order?

    Yes .We will send you information and photos at different production stage of your order. You will get the latest information in time

    10. How to be the agent of your factory?
    A: We are warmly welcome the agent from world country. Pls feel free to contact us for detailed discussion. You will be the solo agent in your country.
